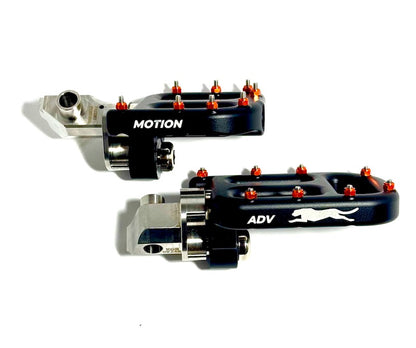

The drop is 20mm down and 5mm back from the KGB mount position. This opens up the cockpit nicely while still giving you full adjustment of the controls.

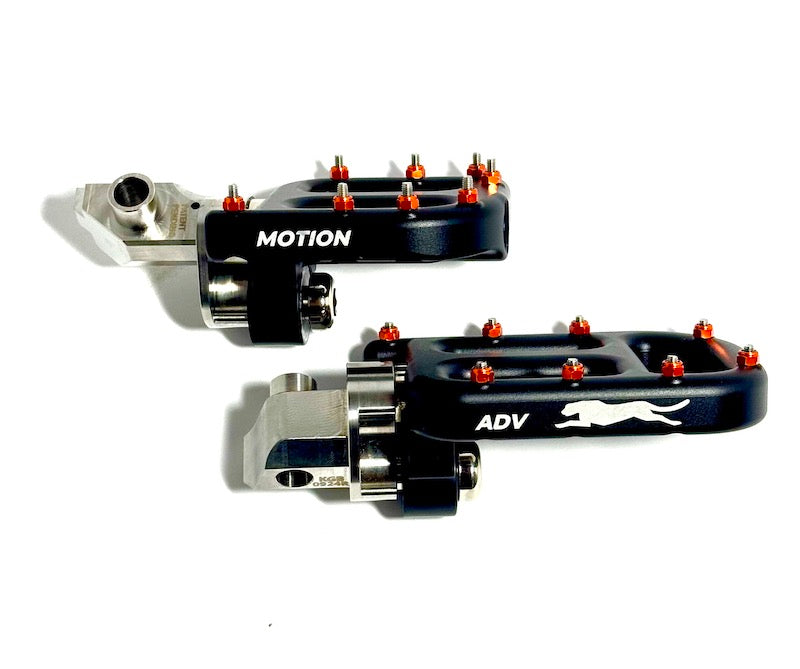

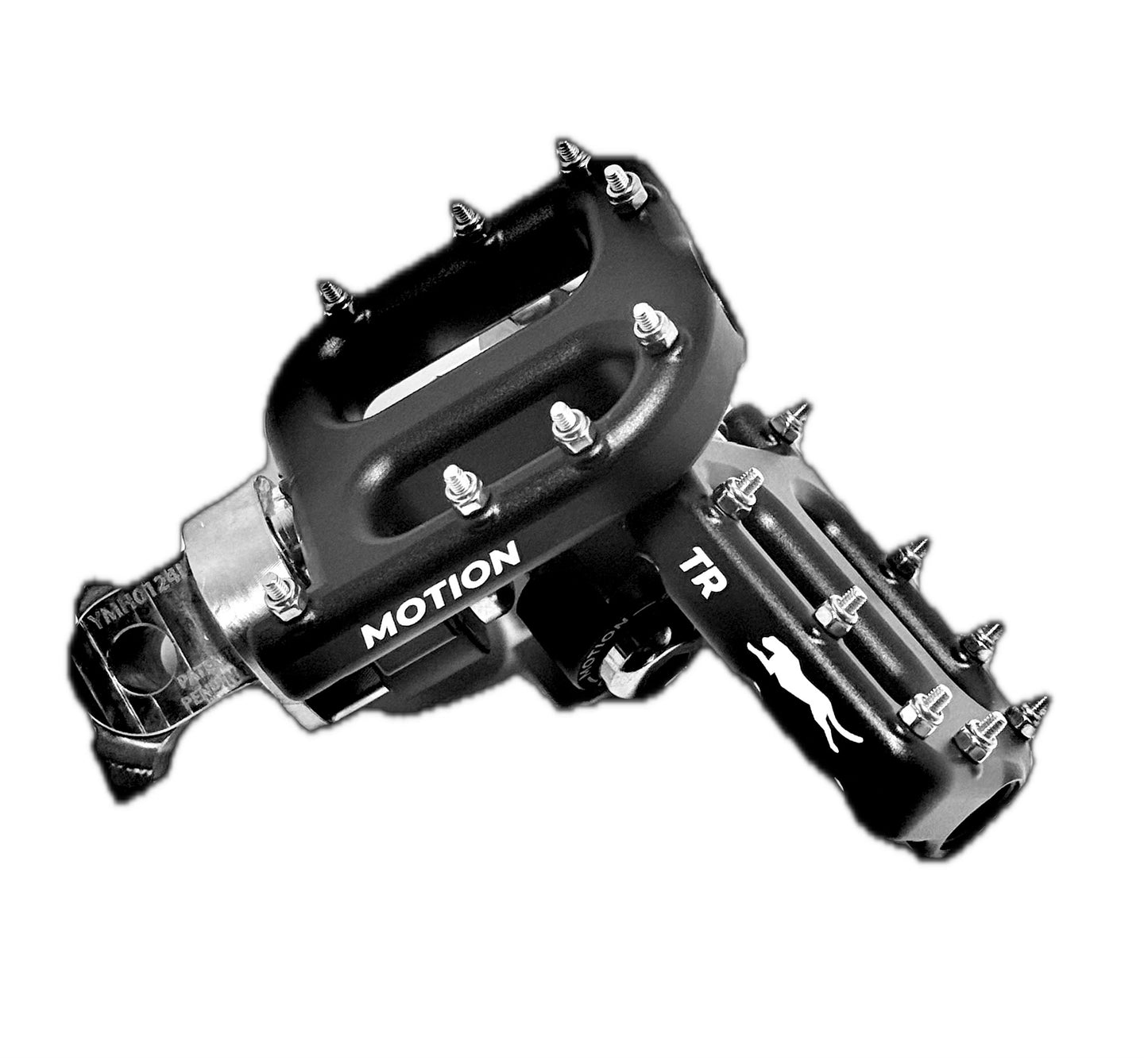

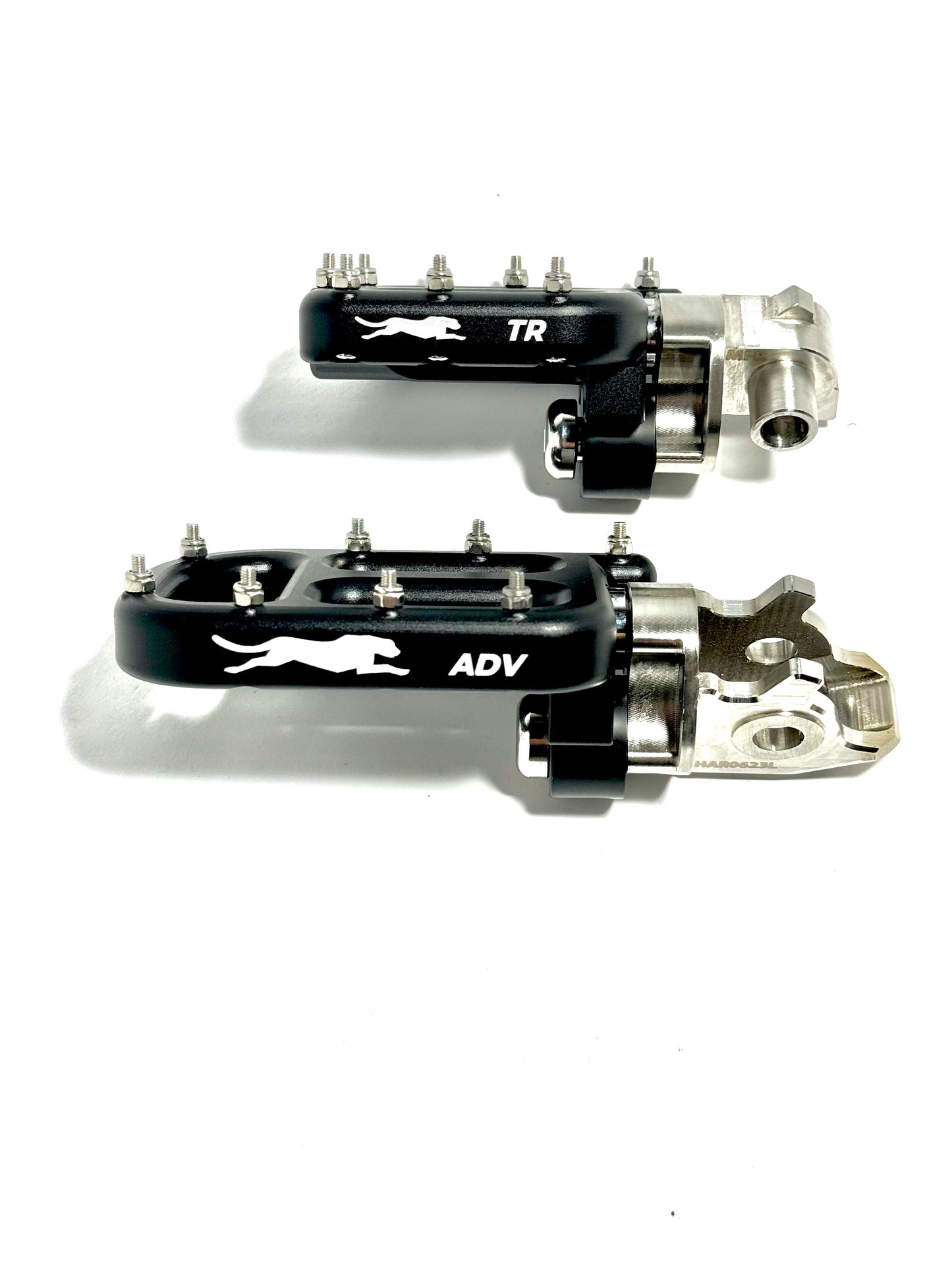

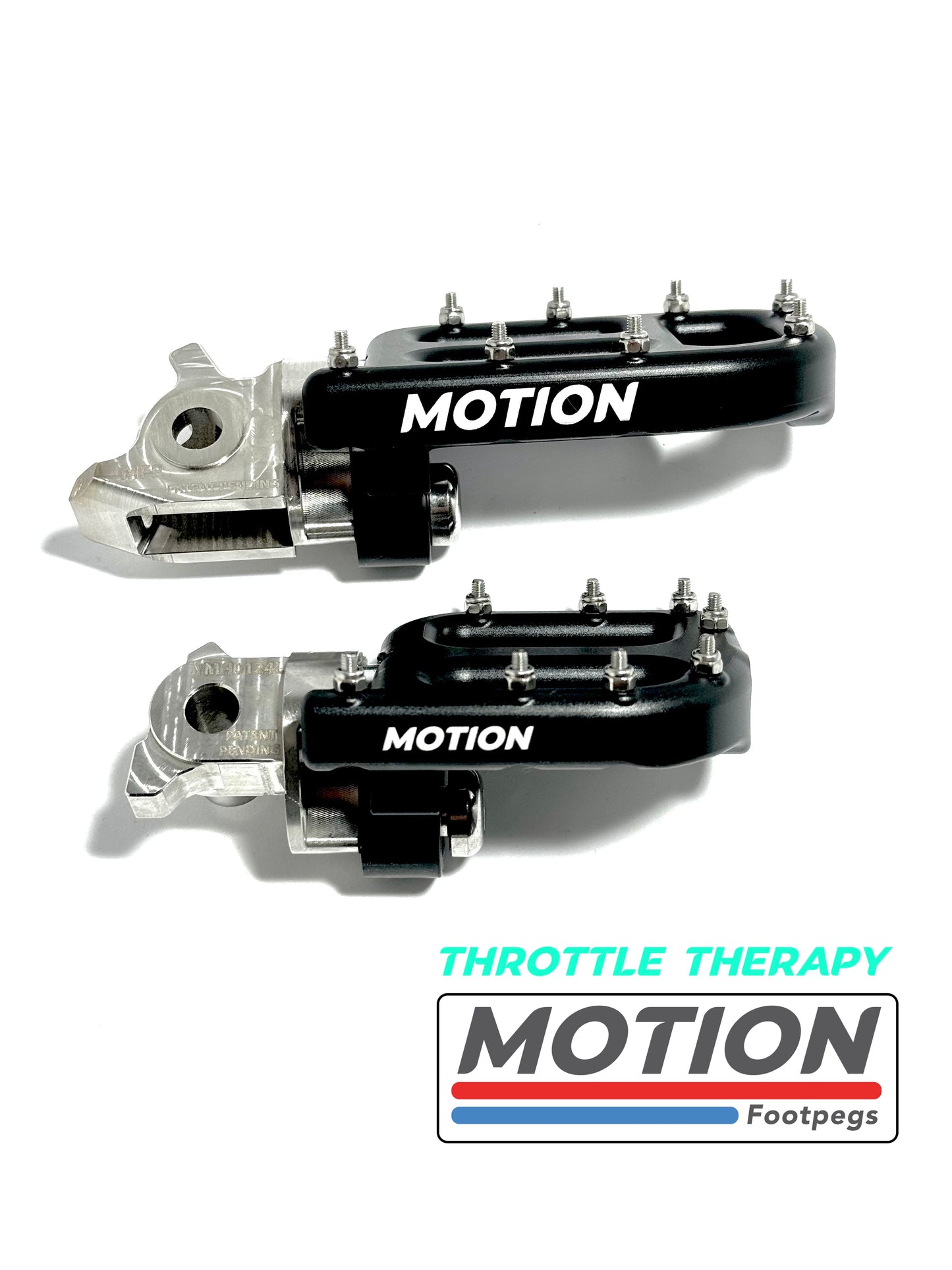

Our patented Flex-Mount Footpeg System provides the best grip for improved control and comfort. Combined with its anti-vibration and fatigue bushing technology these are built to take all the abuse your next ride can dish out while providing maximum support. You will not find a better trail or adventure footpeg on the market.

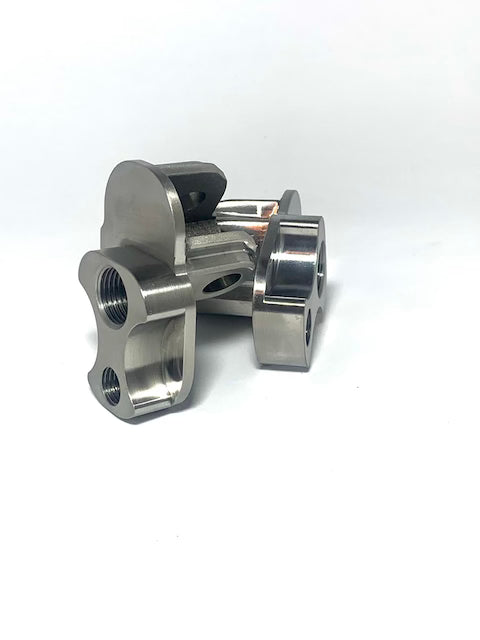

-All Mounts use OEM springs.

-Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs

-A90 (medium flex) rated bushings

-Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.

-Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs

 *IMPORTANT*  If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.

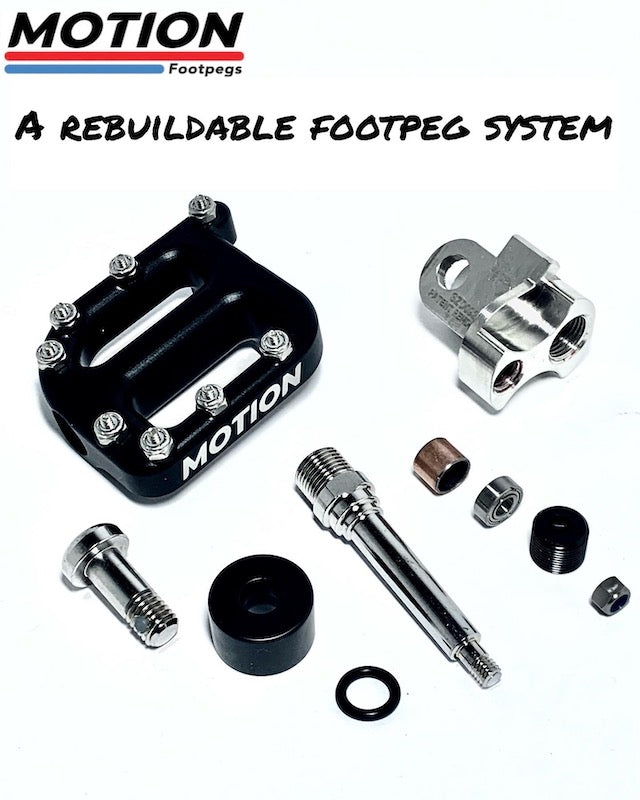

 *We designed our hardware to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.

KTM 2016-2024 ADVENTURE MODELS 690/790/890/950/990/1090/1190/1290

KTM 1998-2016 XCW and EXC

KTM 1998-2016 2 strokes

KTM 2016-2023 50/65

KTM 2020-2024 FREERIDE SXE-5

HUSQVARNA 2014-2015 all models

HUSQVARNA 701 all models and years

HUSQVARNA 2016 all 2 strokes

HUSQVARNA 2020-2024 EE5

GAS GAS 2018-2019 EC/XC/GP models

HUSABERG 1999-2014

GasGas, Beta, Sherco Trials bikes models.

BETA will sometimes use a slightly larger pin diameter. Any M10 metric bolt can be used in its place or a KTM pin can be used. Sorry about the hassle we wish there were better standards in footpeg fitment.

BETA 2013-2019 125-520cc bikes.

Beta XTRAINER 2015-present

SHERCO

• 2018-2023 Sherco SE 125 R
• 2021-2023 Sherco SE 125 R Factory
• 2010-2023 Sherco SE 250 R
• 2014-2023 Sherco SE 250 R Factory
• 2010-2023 Sherco SE 300 R
• 2014-2023 Sherco SE 300 R Factory
• 2008-2013 Sherco SE 250i-F
• 2014-2023 Sherco SE-F 250 R
• 2015-2023 Sherco SE-F 250 R Factory
• 2008-2013 Sherco SE 300i-F
• 2014-2023 Sherco SE-F 300 R
• 2015-2023 Sherco SE-F 300 R Factory
• 2004-2009 Sherco SE 450i
• 2010-2023 Sherco SE-F 450 R
• 2016-2023 Sherco SE-F 450 R Factory
• 2019-2023 Sherco SE-F 500 R
• 2019-2023 Sherco SE-F 500 R Factory
• 2007-2013 Sherco SE-F 510 R
• 2004-2006 Sherco SM 450i

Rieju 21-23 models. all 200-300cc models
