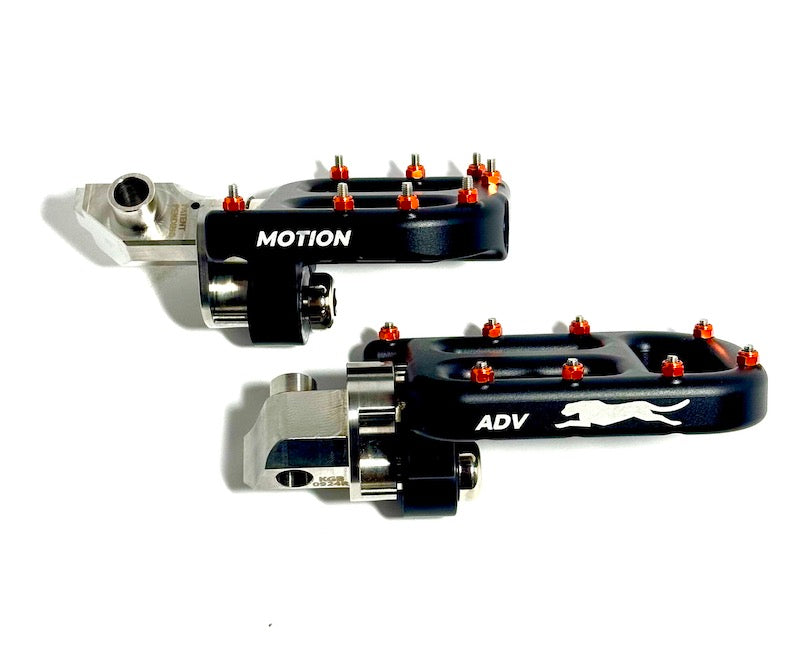

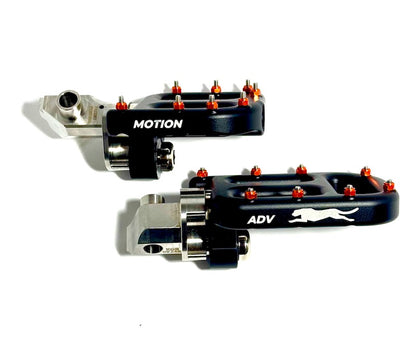

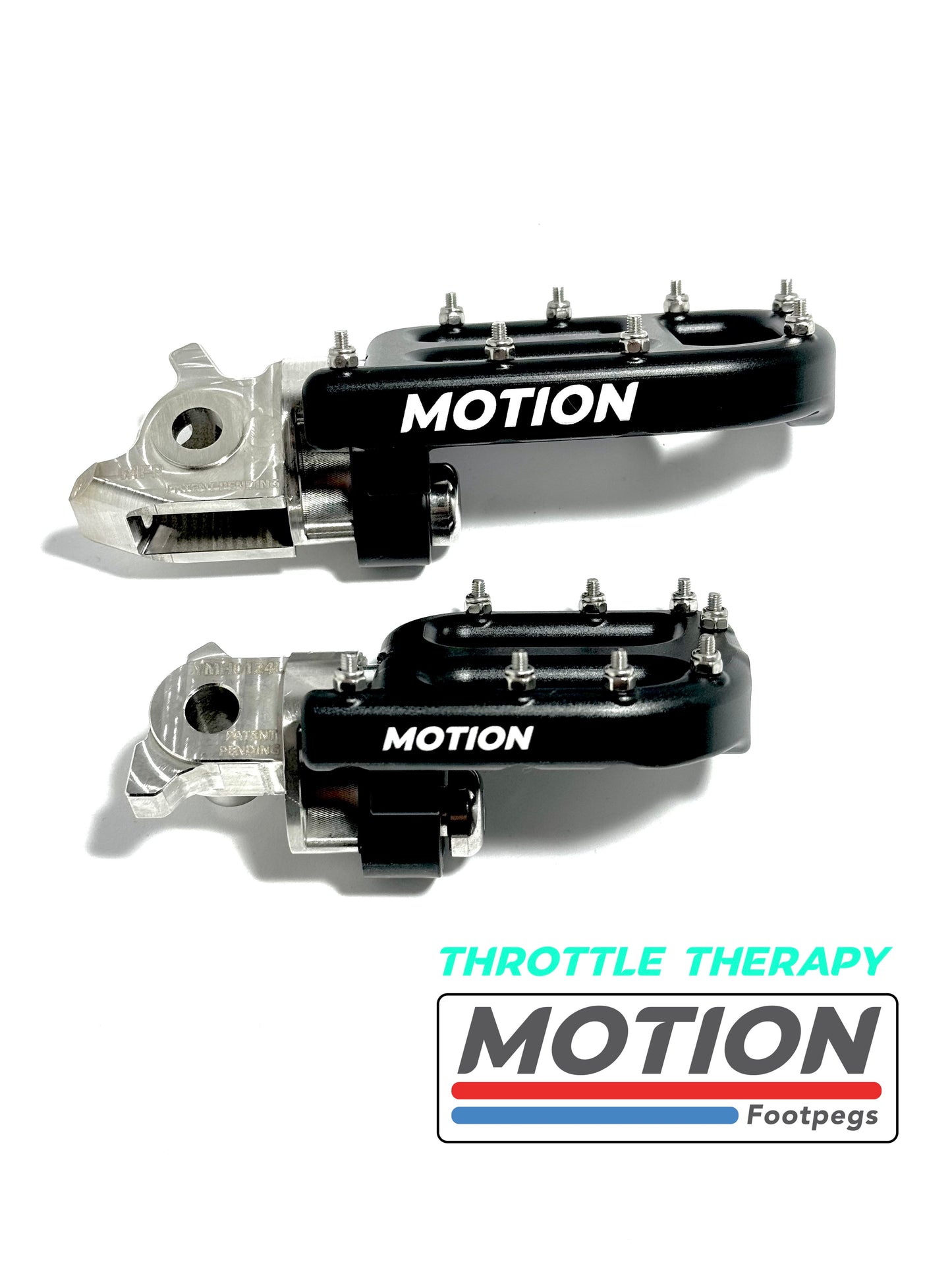

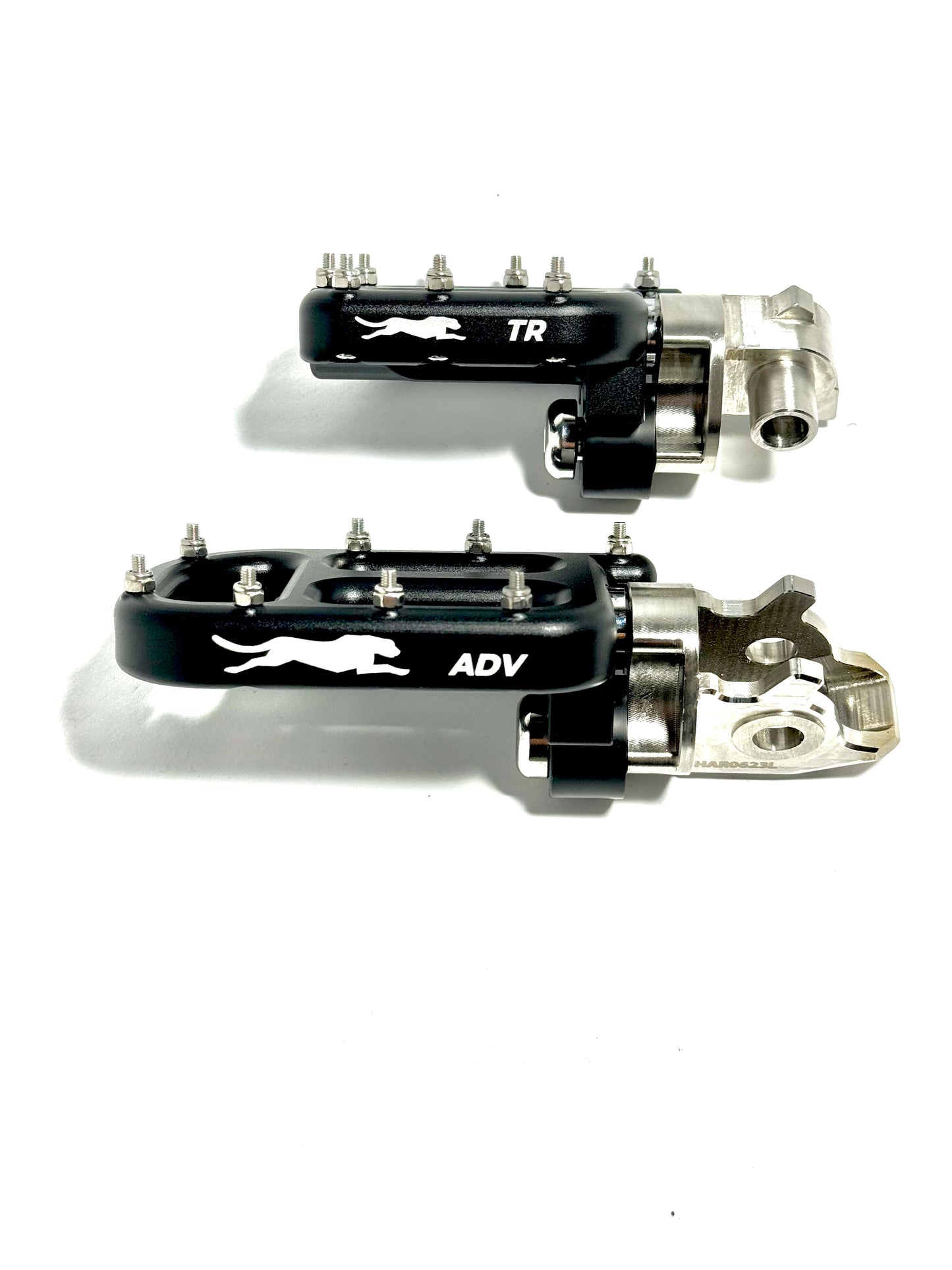

KGFD model (drop mount) FITS: 20'+ models BETA, KTM, HUSQVARNA (Newest frame)

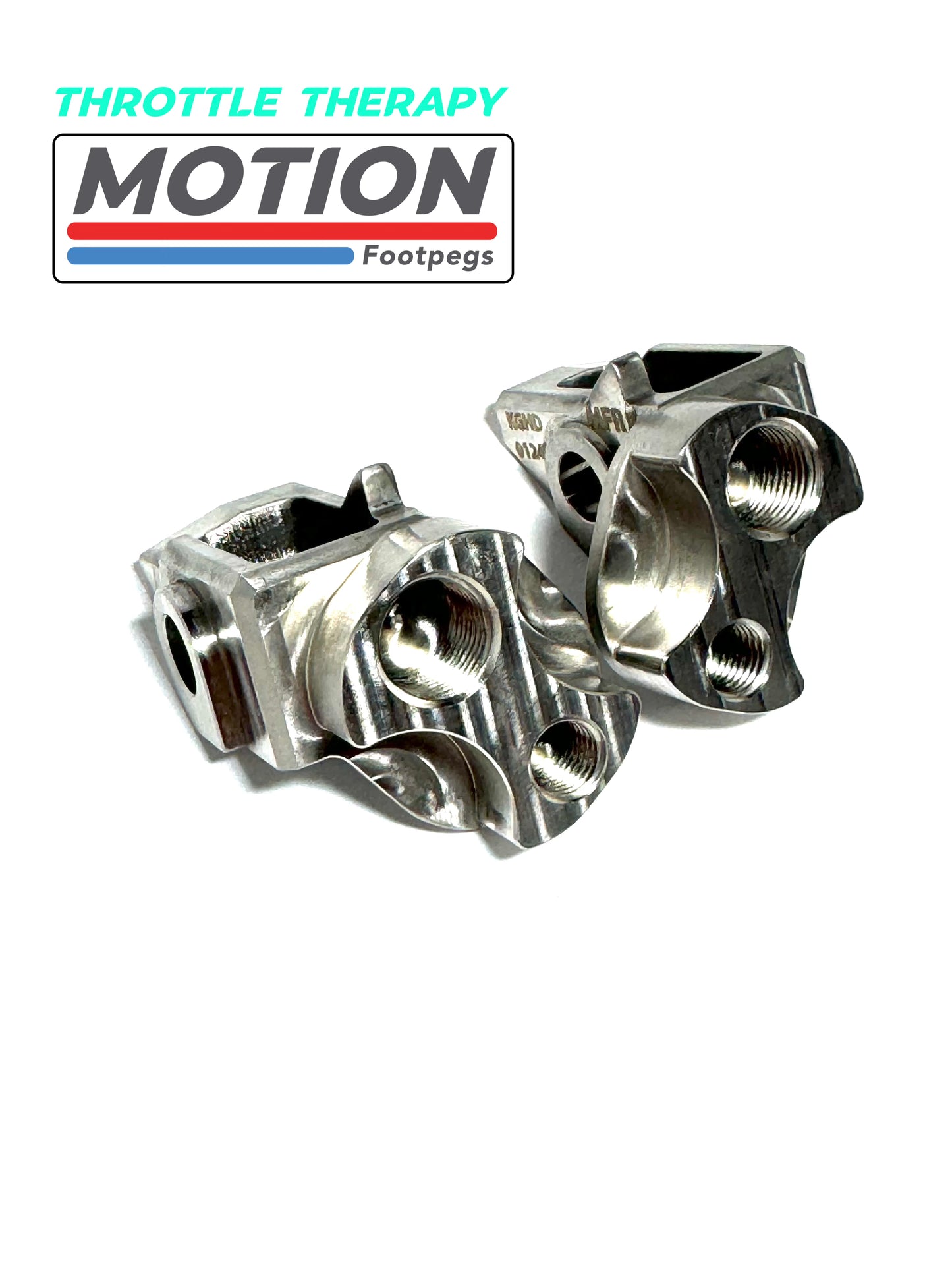

These Drop/lowered footpeg mounts are 10mm down and 5 mm back from our stock position mounts.

Our patented Flex-Mount Footpeg System provides the best grip for improved control and comfort. Combined with its anti-vibration and fatigue bushing technology these are built to take all the abuse your next ride can dish out while providing maximum support. You will not find a better trail or adventure footpeg on the market.

-All Mounts use OEM springs.

-Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs

-A90 (medium flex) rated bushings

-Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.

-Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs

 *IMPORTANT*  If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.

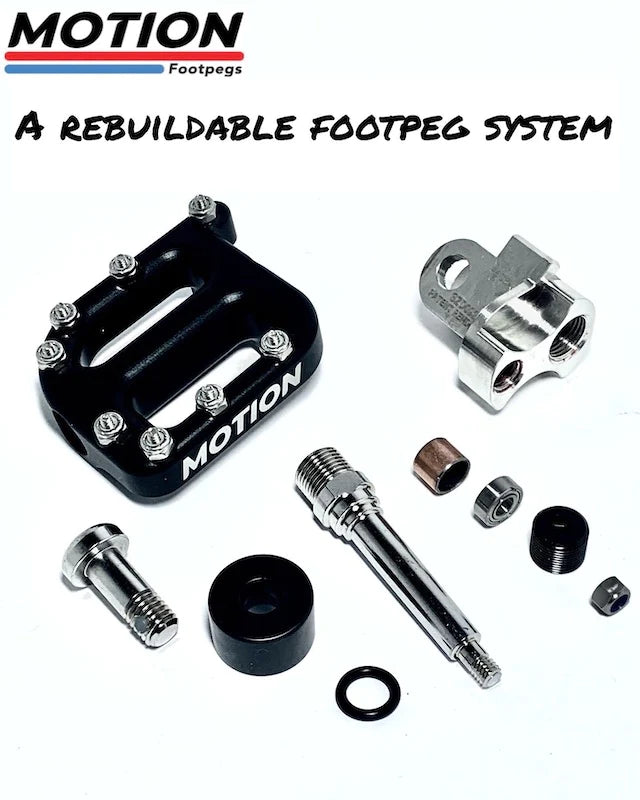

 *We designed our hardware to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.
