KLR model FITS: DR650, KLR650, Honda CRF. Pit bikes
KLR model FITS: DR650, KLR650, Honda CRF. Pit bikes
Regular price
$199.00 USD
Regular price
Sale price
$199.00 USD
Unit price
per
Couldn't load pickup availability

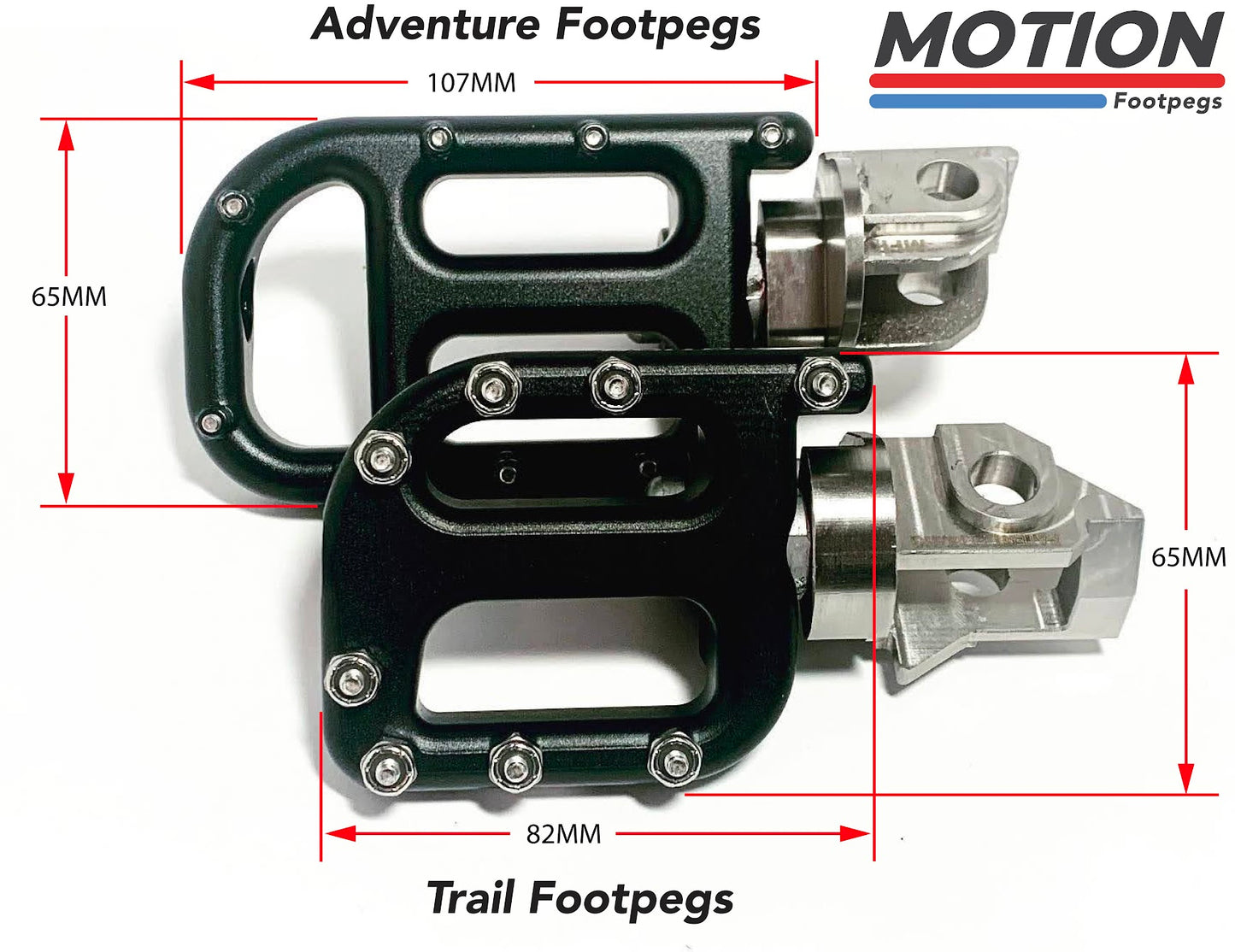

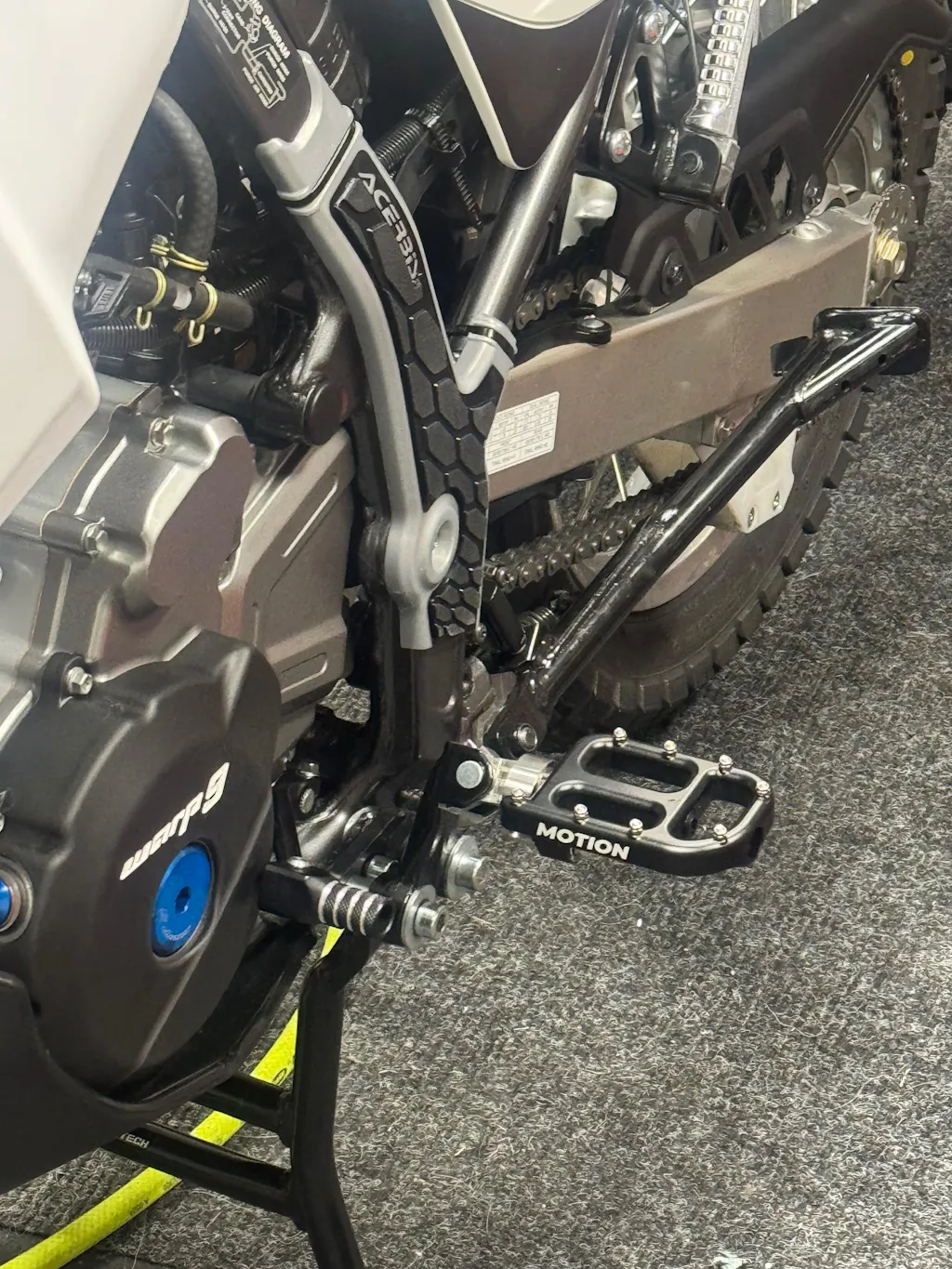

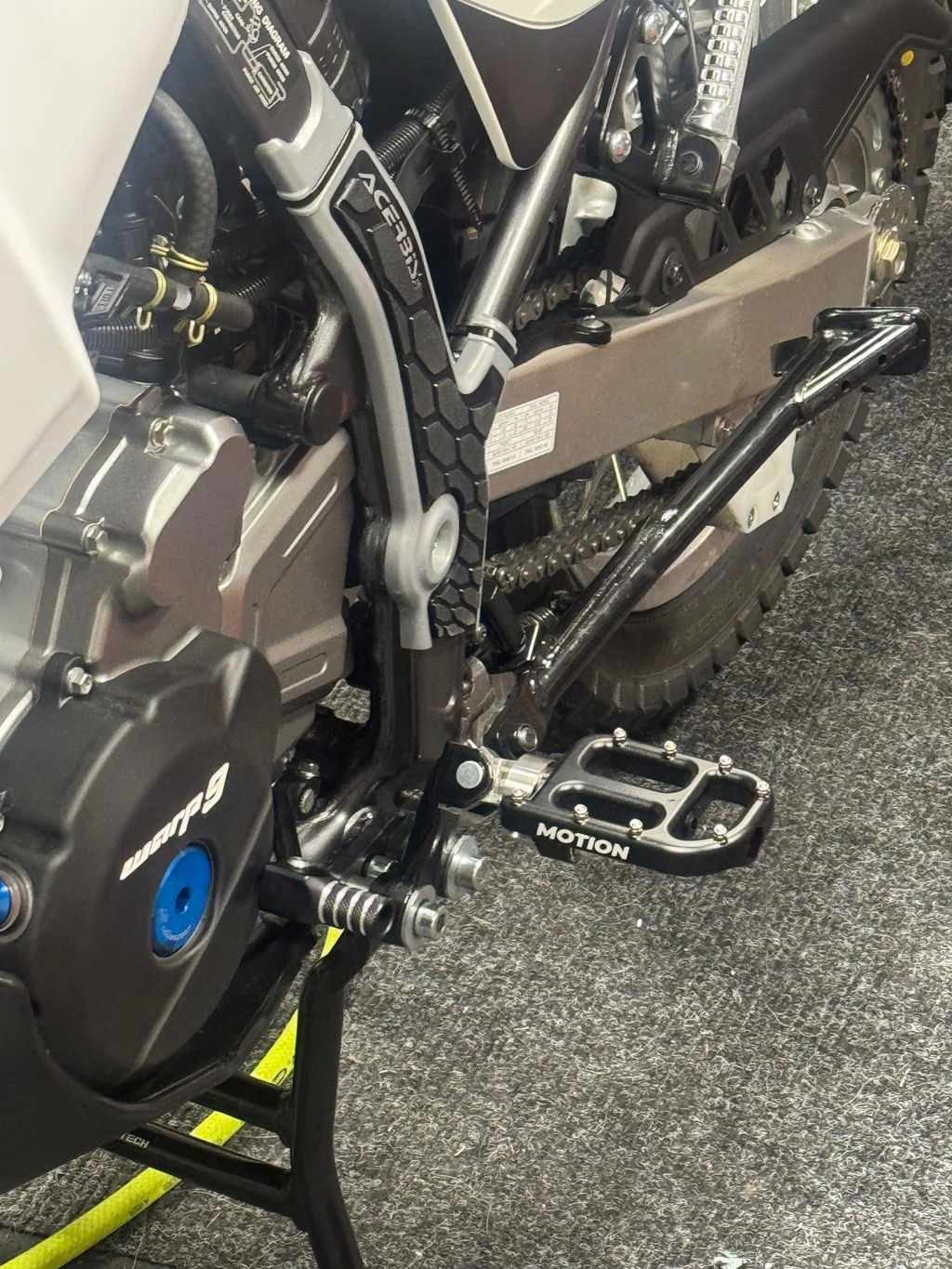

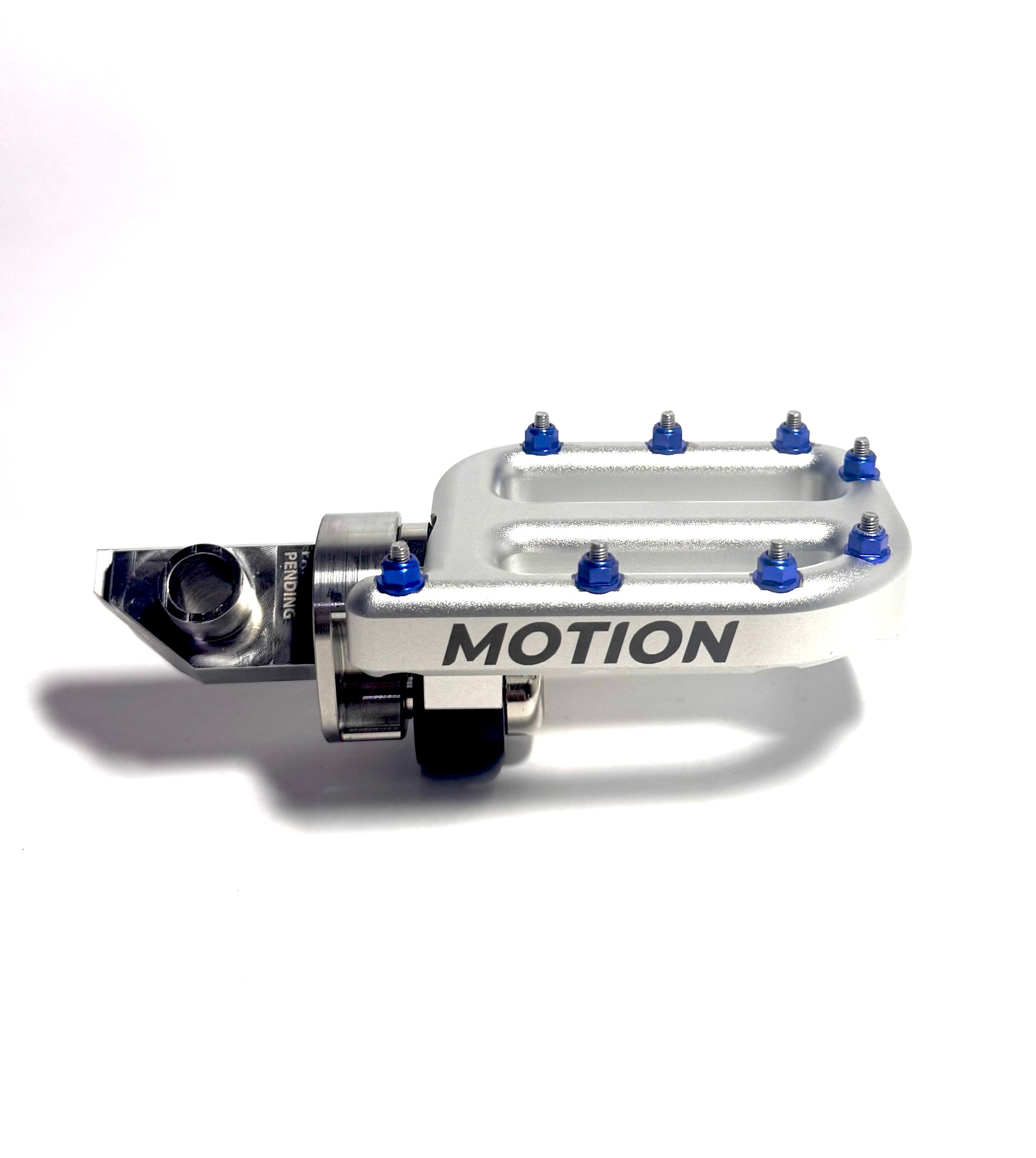

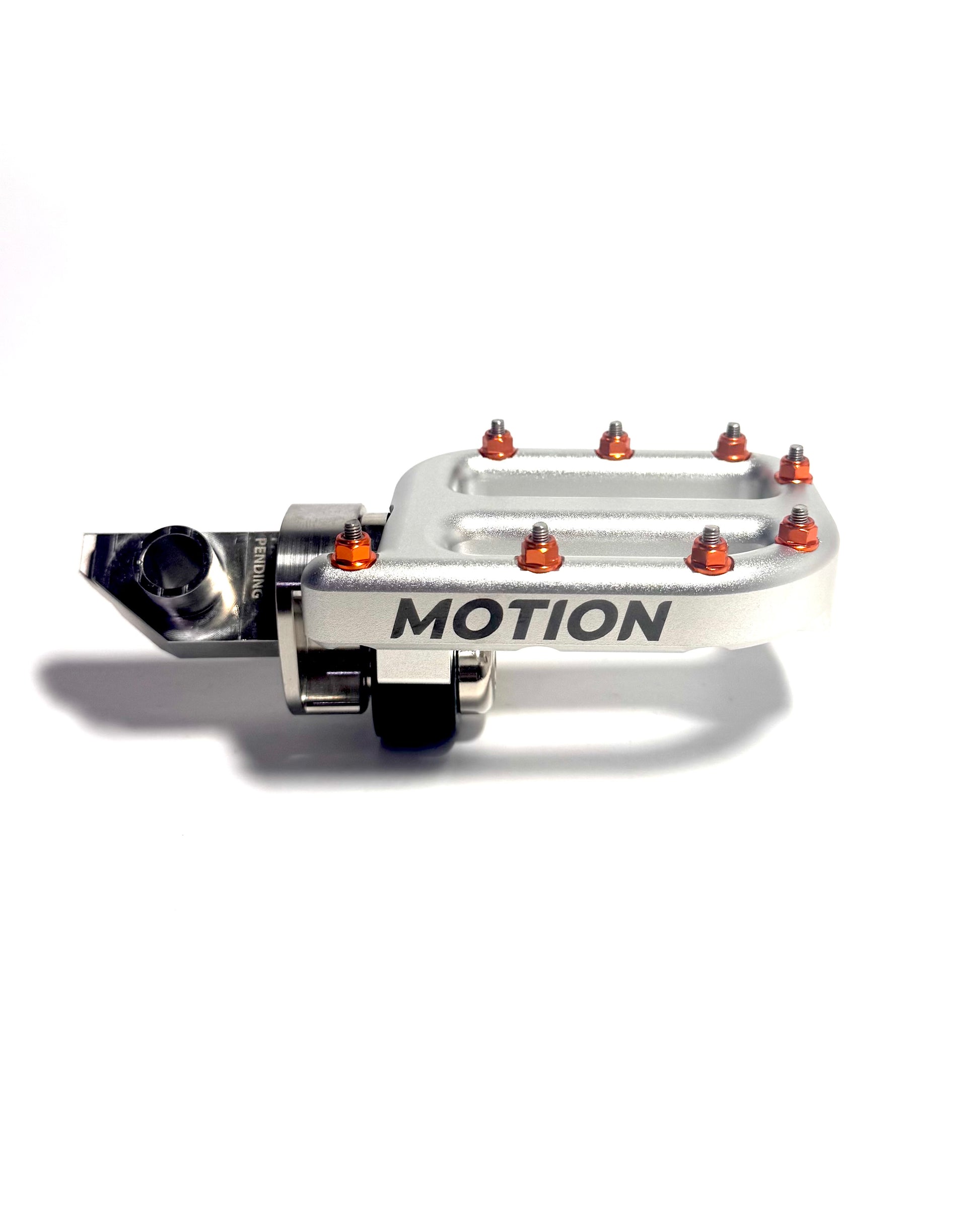

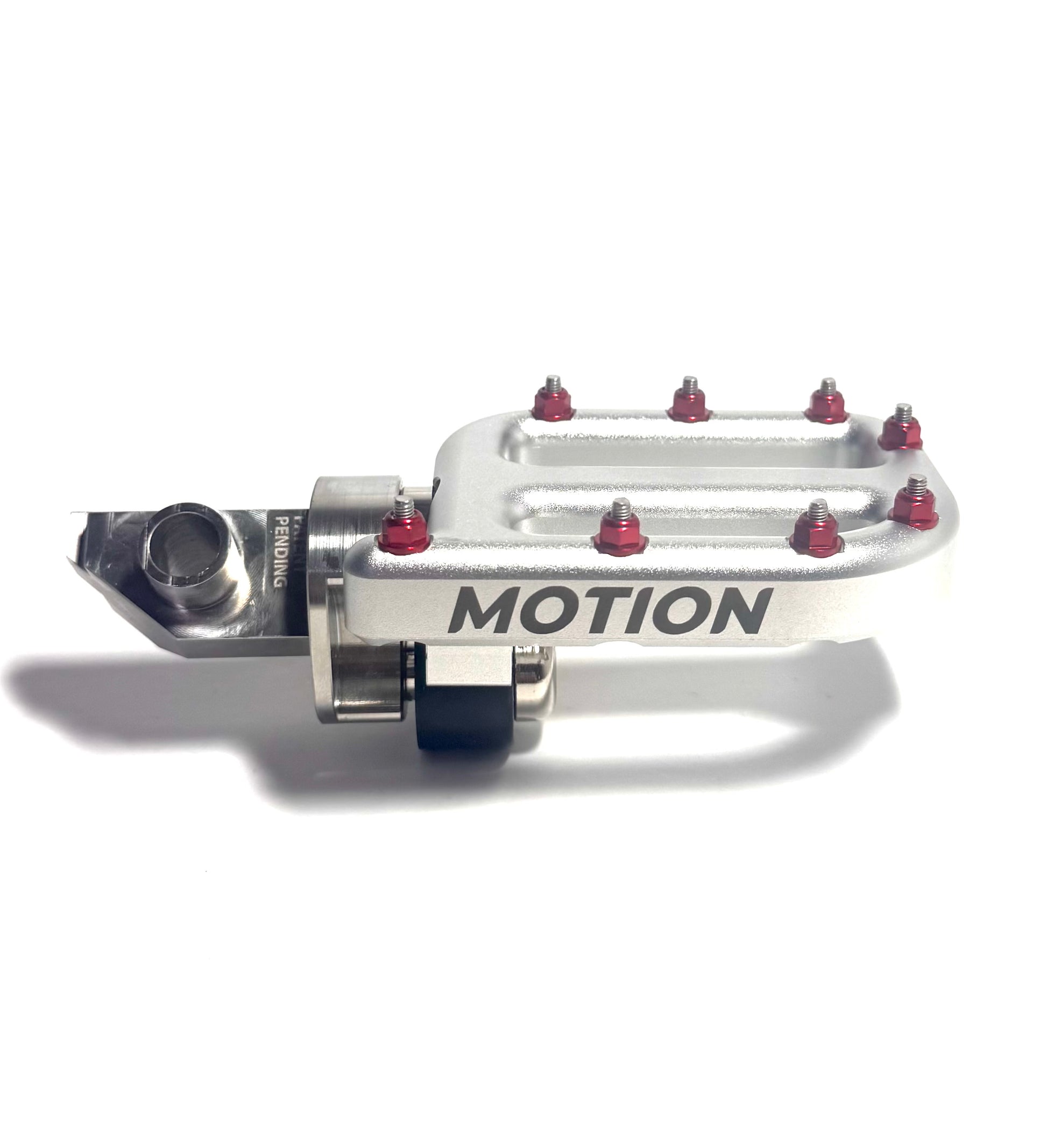

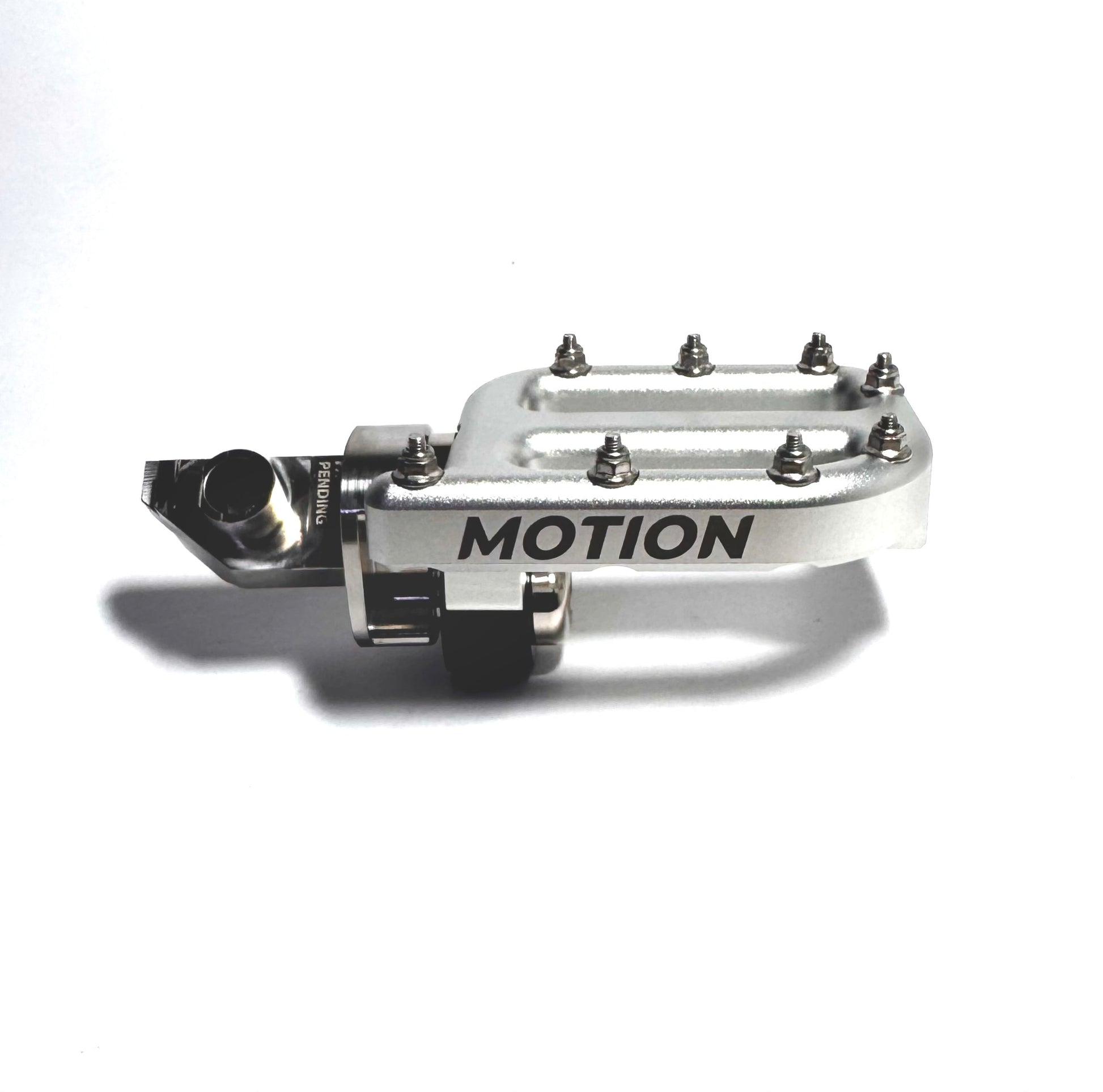

Our patented Flex-Mount Footpeg System now offers a platform option for all riders. Try our Trail or Adventure platforms that offer rotation with the added benefits of vibration damping and adjustable flex.
Click here to learn more about the 2 options.
The Enduro Platform does not rotate and offers a traditional footpeg option for riders. Click the link below for more details. Or reach out if you have questions.
Click here to read about our New Enduro Platform option.
-Enduro platforms are hard-mounted (they do not rotate or flex) with an optional camber adjustment wedge sold separately.
-Trail and Adventure Platform options come with:
-Sleeve bearing (8x10x20mm) included for 8mm OD' footpeg pins.
-Right and Left spring included.
-Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs
-A90 (medium flex) rated bushings
-Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.
-Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs
*IMPORTANT* If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.
*We designed our hardware to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.
Fitment:

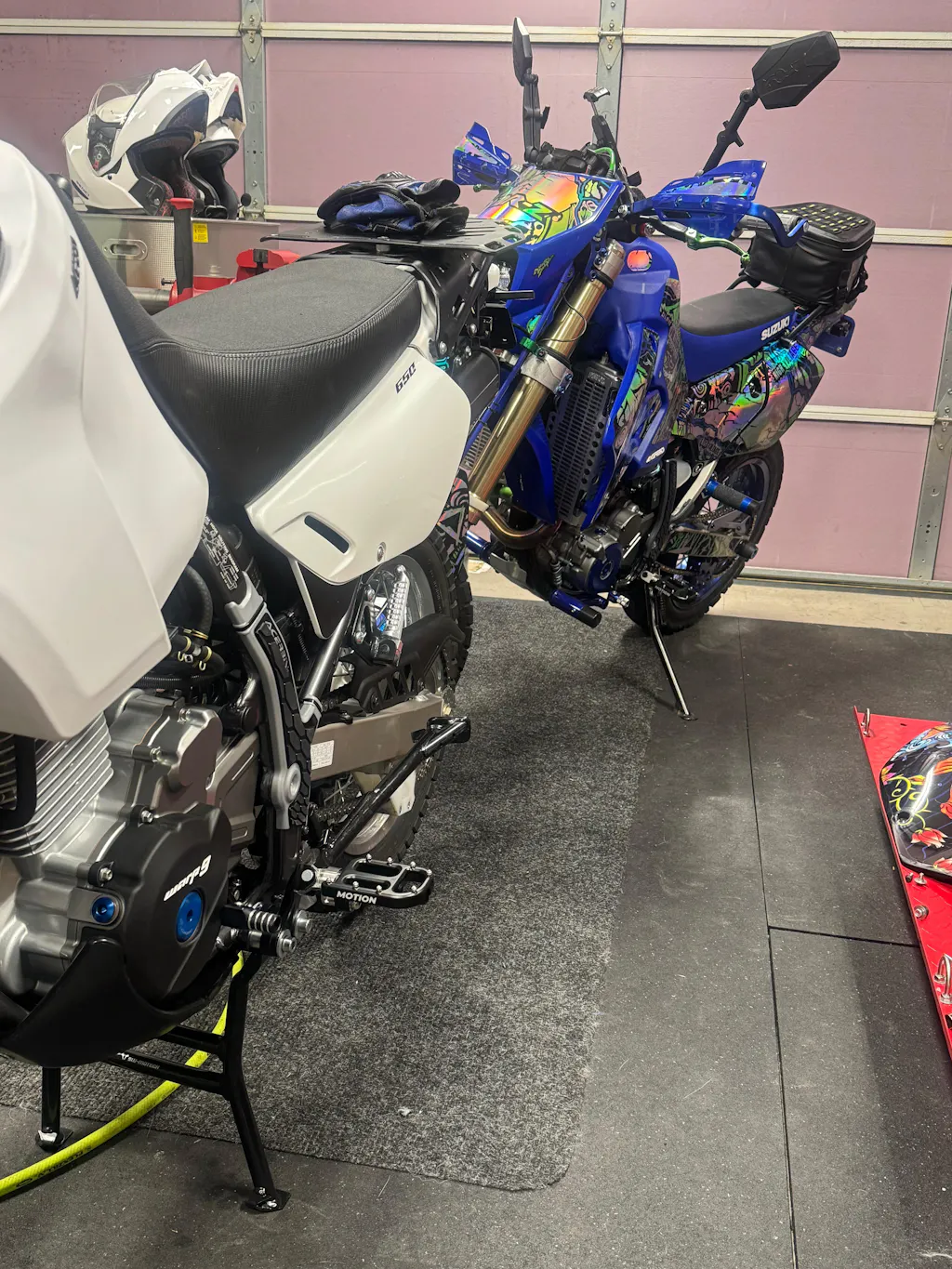

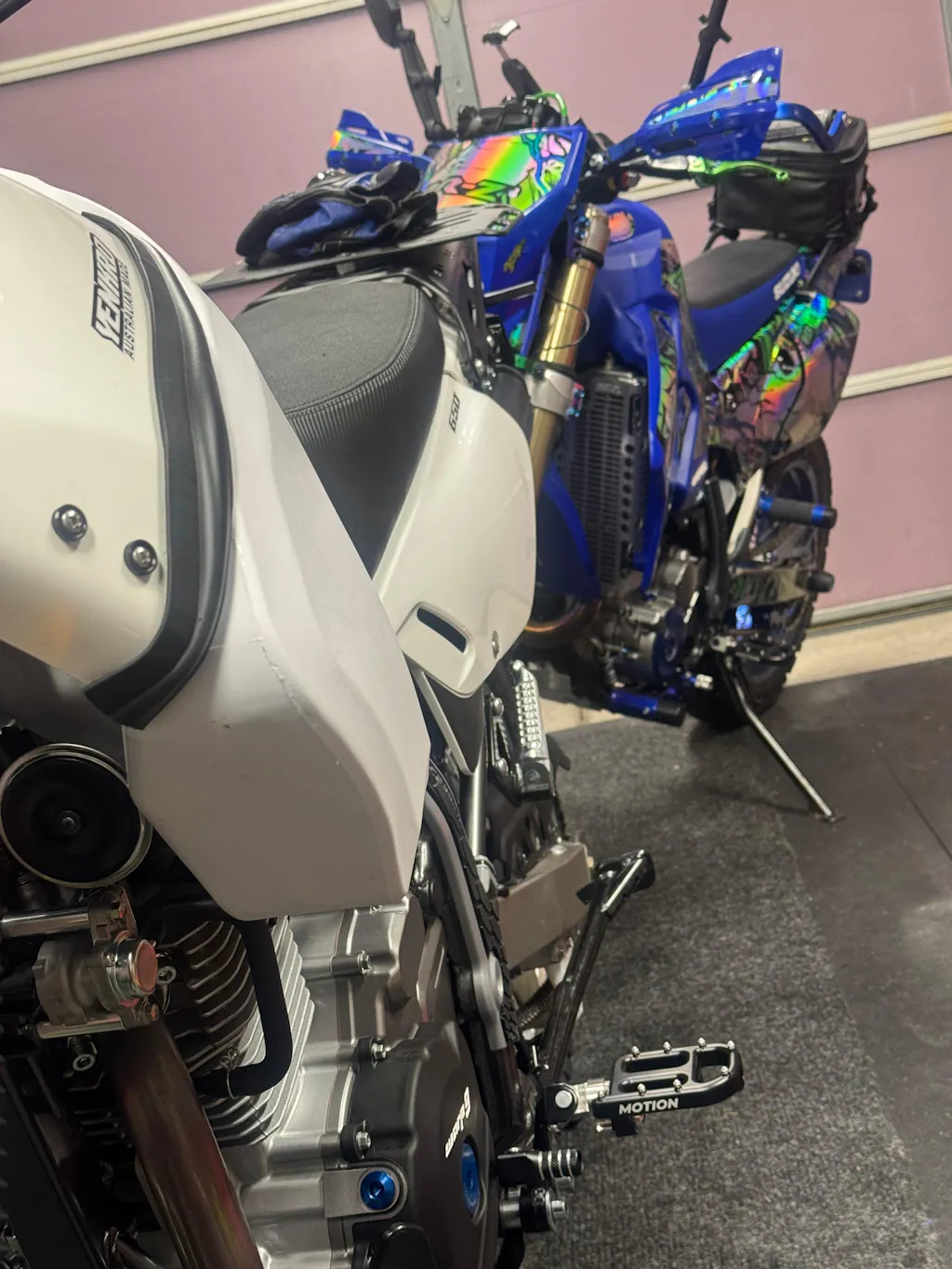

Suzuki DR650 '96 - present year
Suzuki DR350S '90 - '99
Suzuki DR350 '90 - '99
Suzuki DR350SE '94 - '99
KAWASAKI KLR650 all models 1987- Present year
Honda CRF100F 2004-2009 2011-2013
Honda CRF50F/CRF70F/CRF80F 2004-2009 2011-2012
Honda XR100R/XR50R/XR70R XR80R 2000-2003
Honda TW200 1991-2012
Kawasaki KLX110 2011-2016
Yamaha PW50 1995-2009
Yamaha PW80 1995-2006
Yamaha TTR50E 2013-2016
Yamaha TTR90E 2004-2007
Fitment Note:
1. They fit most Chinese 50cc 70cc 110cc, 125cc 150cc four strokes pit bike/ dirt bikes Brand as Orion, X Extreme, BSE, TATAO, Appolo, SUNL Etc
2. They can be modified to fit Honda XR50 XR70 CRF50F CRF70F CRF80F CRF100F Etc.
3. They Fit Kawasaki KLX110, Yamaha PW50 PW80, TW200, TT-R50E, TT-R90E. Some of these bikes may need a little modification by yourself, Please check the size carefully before you buy. If you make mods to the footpegs for fitments it will void all warranties and return policies.
