KGH model FITS: KTM, HUSQVARNA, GAS GAS, GPX
KGH model FITS: KTM, HUSQVARNA, GAS GAS, GPX
Regular price
$199.00 USD
Regular price
Sale price
$199.00 USD
Unit price
per
Couldn't load pickup availability

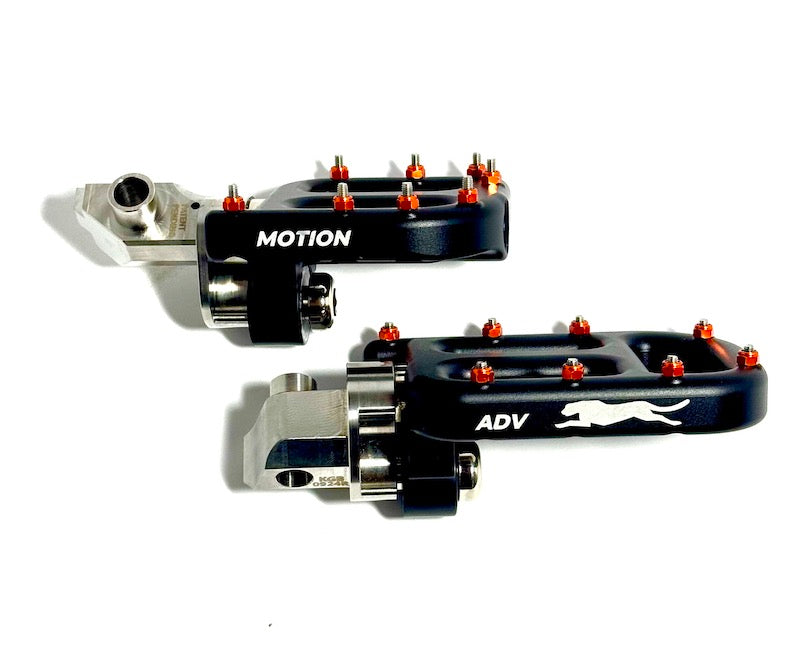

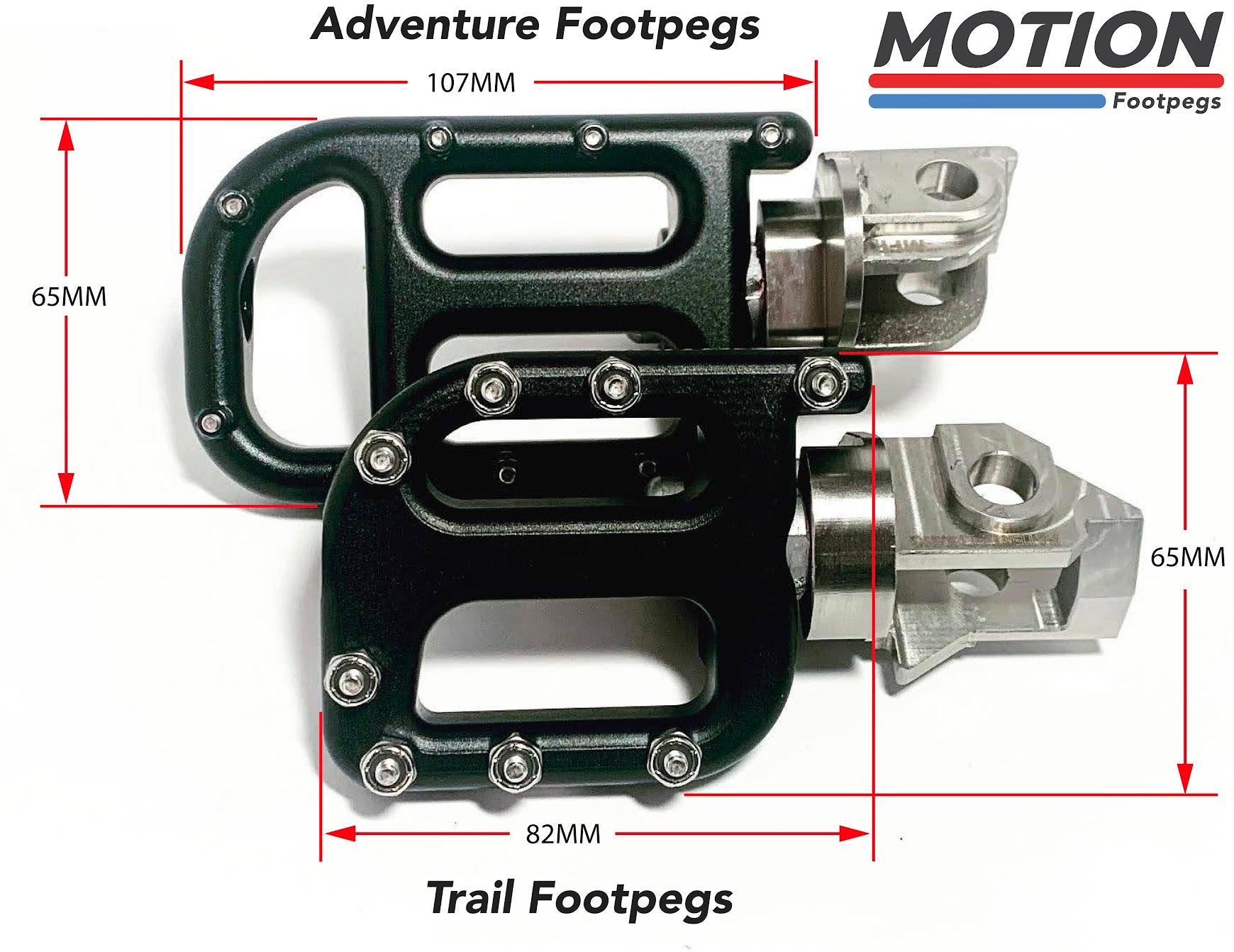

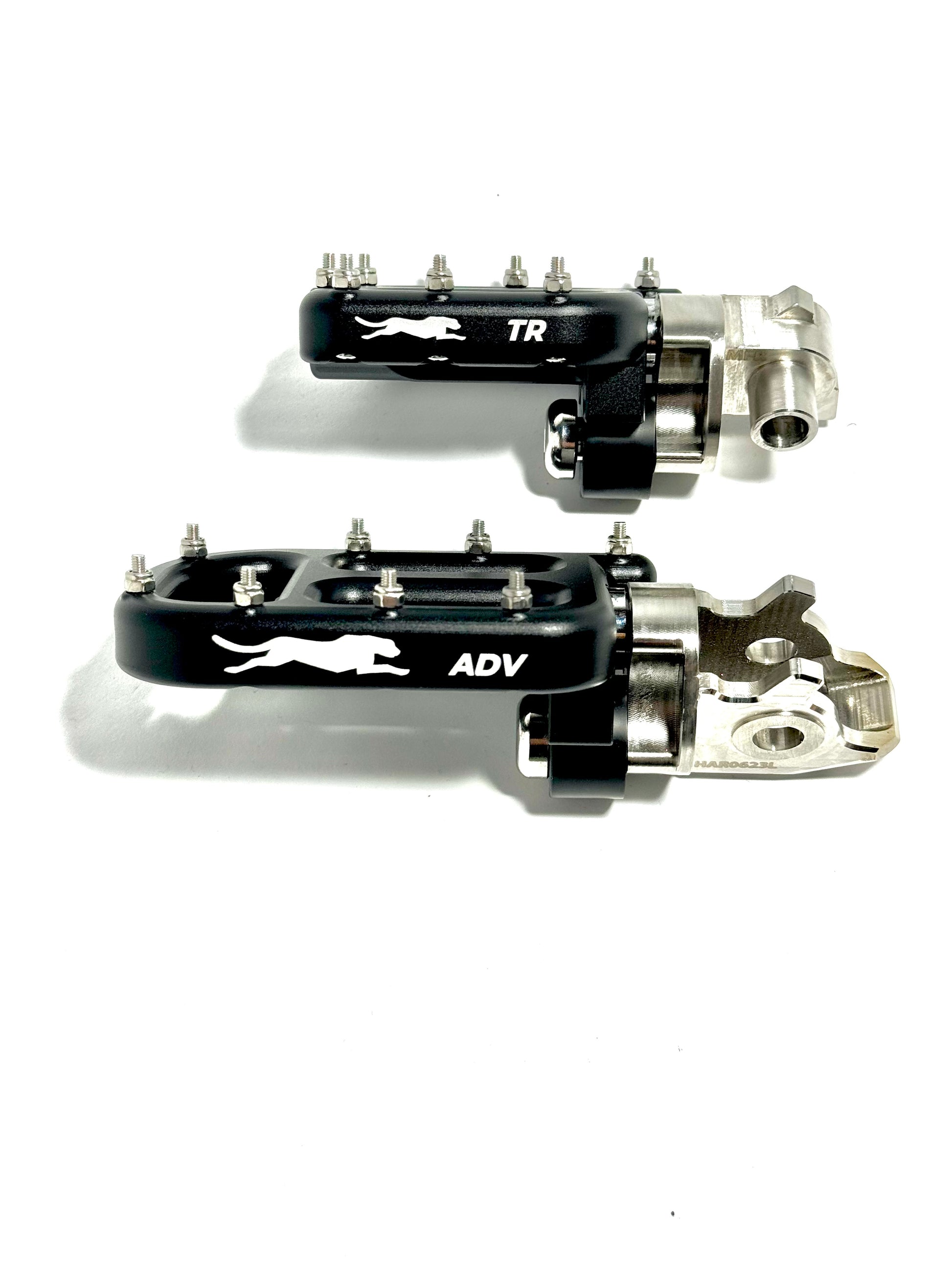

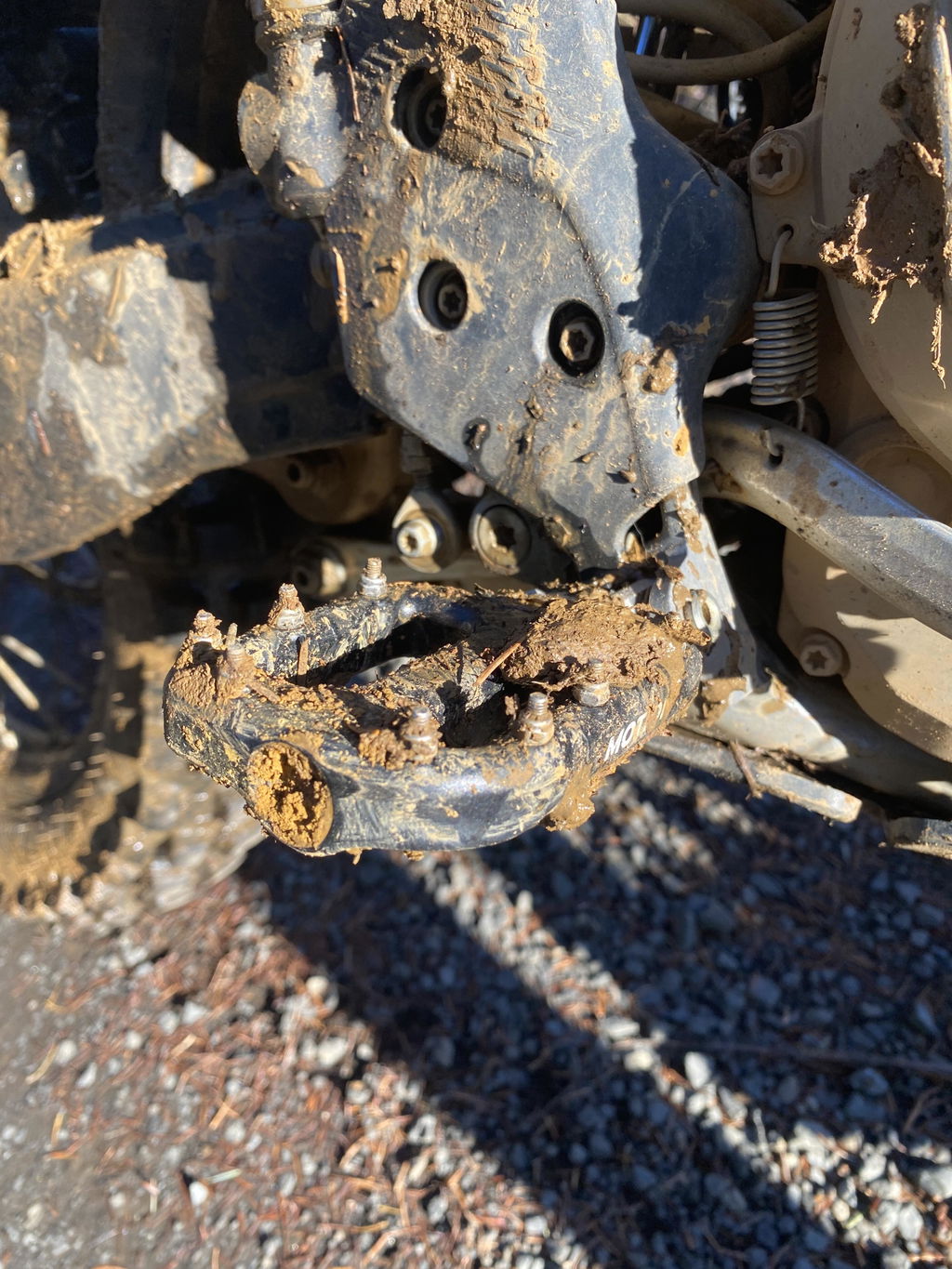

Our patented Flex-Mount Footpeg System now offers a platform option for all riders. Try our Trail or Adventure platforms that offer rotation with the added benefits of vibration damping and adjustable flex.
Click here to learn more about the 2 options.
The Enduro Platform does not rotate and offers a traditional footpeg option for riders. Click the link below for more details. Or reach out if you have questions.
Click here to read about our New Enduro Platform option.
-Enduro platforms are hard-mounted (they do not rotate or flex) with an optional camber adjustment wedge sold separately.

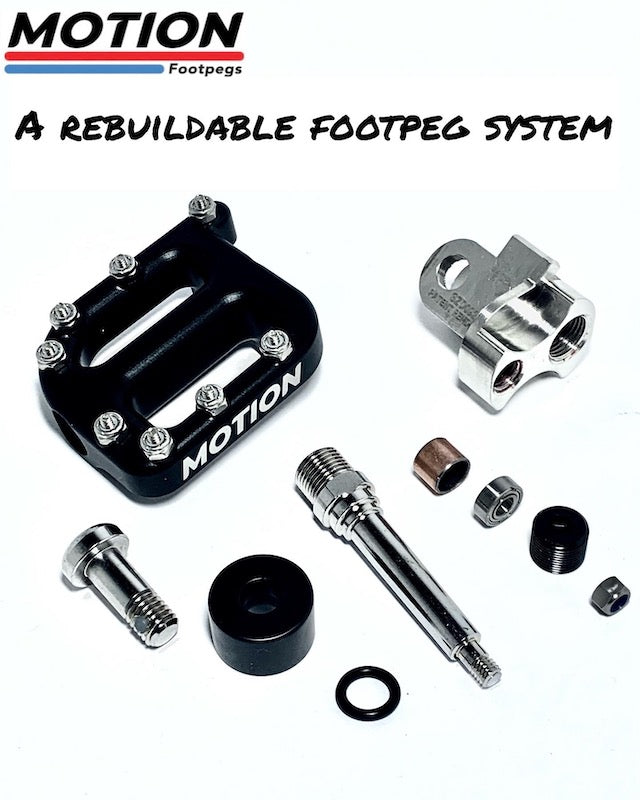

-Trail and Adventure Platform options come with:
-Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs
-A90 (medium flex) rated bushings
-Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.
-Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs
*IMPORTANT* If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.
*We designed our hardware to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.
KTM 2016-2022 XCF/SXF
KTM 2017-2023 EXCF
KTM 2017-2022 SX/XC/XCW
- 2021-2023 Gas Gas MC 85
- 2021-2023 Gas Gas MC 125
- 2022 Gas Gas MC 250
- 2021-2023 Gas Gas EC 250
- 2021-2023 Gas Gas EC 300
- 2022 Gas Gas EX 250
- 2021-2023 Gas Gas EX 300
- 2021-2023 Gas Gas MC 250 F
- 2021-2023 Gas Gas EC 250 F
- 2021-2023 Gas Gas EX 250 F
- 2022 Gas Gas MC 350 F
- 2021-2023 Gas Gas EC 350 F
- 2021-2023 Gas Gas EX 350 F
- 2021-2023 Gas Gas MC 450 F
- 2021-2023 Gas Gas EX 450 F
KTM 125-500 ALL MODELS FROM 2017-2022, WILL FIT 2023 XC-W, EXC MODELS
HUSQVARNA 125-450 ALL MODELS FROM 2017-2022
HUSQVARNA 501 2017-2023.
Husqvarna 2017-2023: TE250i TE300i FE 250 350 450
GPX Moto: 250, 300, 450 all models and years.
